Propeller System Board (PSB)

bullet



bullet

Introductory Price is only $89 for PSB board !!! (LCD display sold separately)

bullet

"Like New" displays sold with PSB for $30

bullet

"Used" displays is free with purchase.

bullet

To order, just send me an email with your order and shipping location.

bullet

Announced in this forum thread

 Email Me

bullet

Features:

bullet
4.3" Touchscreen microreflective TFT LCD
bullet
Adjustable backlight control
bullet
I2C touchscreen controller
bullet
Full-size SD card interface
bullet
Powered stereo audio
bullet
3-axis accelerometer
bullet
Programmable front panel pushbutton
bullet
VGA out connector
bullet
TV out connector
bullet
PS/2 keyboard/mouse connector
bullet
USB mouse connector (for PS/2 compatible mice)
bullet
Note:  VGA, TV, PS/2, and USB connectors and required resistors are provided for user installation.



bullet

 Code Samples

bullet

PSB_Paint - Draw on your touchscreen with a stylus

bullet

bullet

PSB_VGA_Demo - This is the Parallax VGA demo modified to work on the LCD screen.

bullet

PSB_Graphics_Demo - This is the Parallax Graphics deme modified to work with this screen.

bullet



bullet

PSB_6-BitPhoto - Show a fullscreen 6-bit image with 11-Hz update rate direct from SD card.

bullet

Here's a Windows Application to turn a 480x272 image into required .dat file for SD card (this forum page)

bullet

bullet

PSB_AccelTest - Test and calibrate the onboard 3-axis accelerometer

bullet

bullet

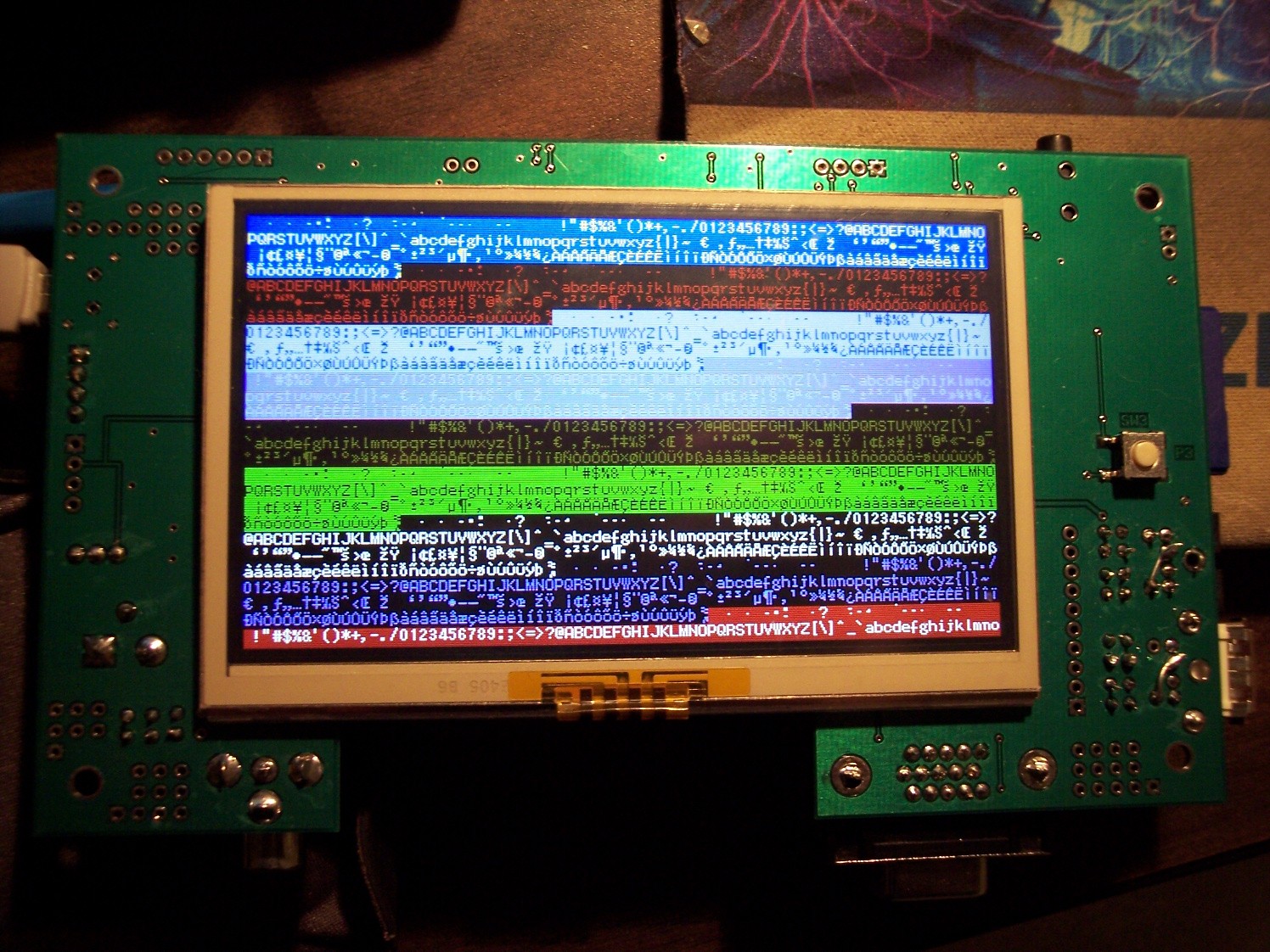

PSB_TinyFont - Gives 80 column text with a tiny font

bullet



bullet

PSB_8x8TileDriver -  This one gives an 8x16 font using 8x8 tiles (bottom of this forum page)

bullet

Demos from Andy Schenk (forum name: Ariba)

bullet

TSD_GraphicsDemo - Fullscreen graphics at 240x136 resolution (this forum page)

bullet

TSD_BitmapDrivers - Includes a fullscreen (1-bit per pixel) driver (this forum page)

bullet



bullet

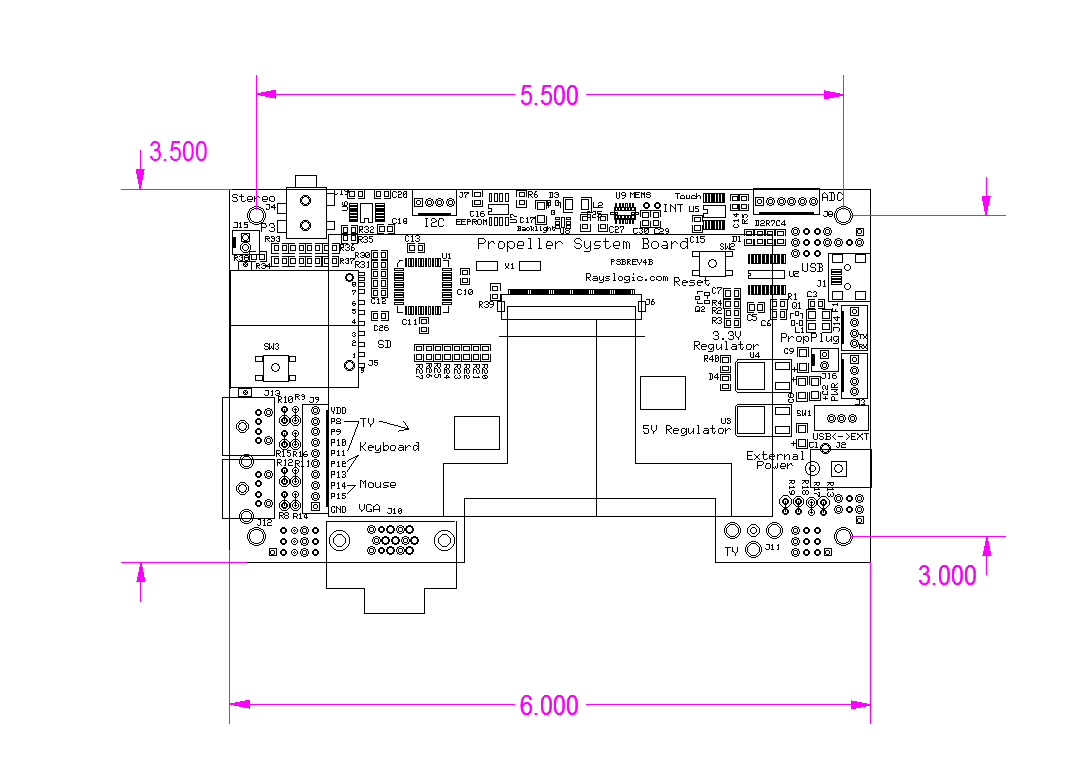

Board Layout & Dimensions

bullet



bullet

Schematics

bullet

bullet
