Our latest P2 board design
-
Based on SimpleP2 but with Parallex Edge style caps and regulators around P2, USB-C for serial inteface and power, an option to increase core voltage for enhanced overclocking ability, a 4-bit uSD interface with power control, and memory moved to top layer.
-
Photos &
Features the Parallax Propeller II microcontroller

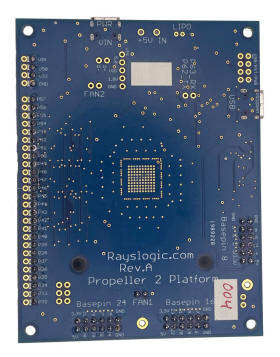

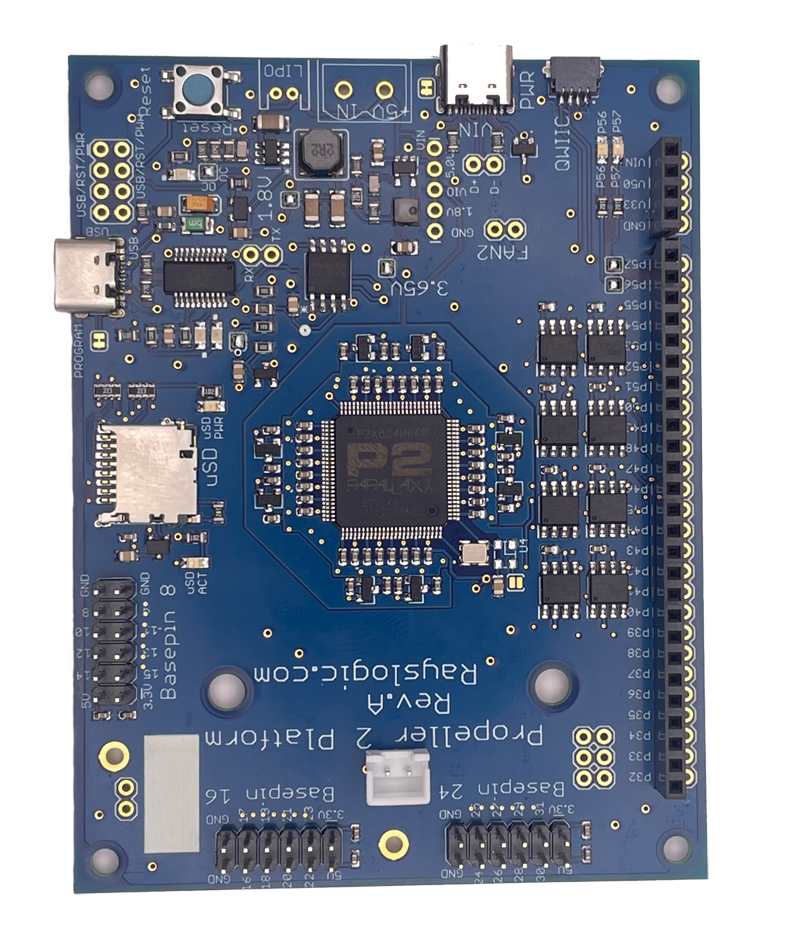

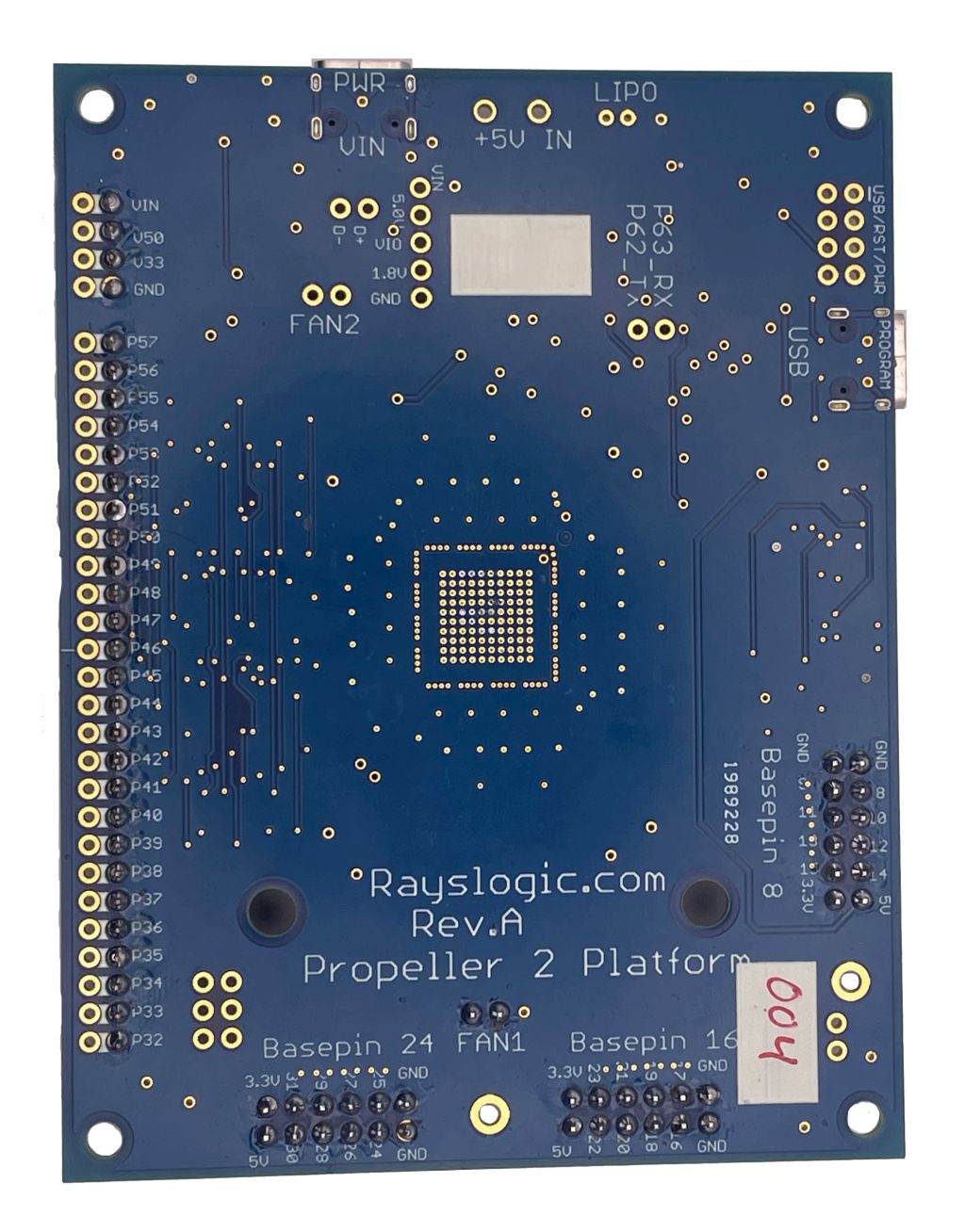

- Photos:
-
(click on image to enlarge)
- Features:
- The Parallax Propeller II MCU (P2) with 8 cores and 512 kB of internal RAM and 64 Smart I/O Pins
- Integrated FTDI USB serial interface for
programming and debugging via USB-C connector (also supplies up
to 500 mA of power)
- uSD connector with 4-bit interface and
mosfet power control
- 16 MB onboard Flash chip for boot program
storage (1 MB) and also data storage (15 MB)
- Qwiic connector (compatible with large
array of SparkFun and Adafruit items)
- I/O pins brought out to three Eval
style connectors for basepins 8, 16, and 24 for use with several Parallax Eval Board Accessories
- A USB-C connector for extra power
- A Propeller Platform style header for I/O
pins P32..P57 and also GND, 3.3 VDC, 5.0 VDC, and VIN
- 64 MB of
PSRAM on top of board.
- Two blue LEDs, shared with Qwiic connector I2C pins
- Two fan connectors for standard 5V fans
(useful when overclocking)
- Download the
Schematics
- If you are new to P2 and/or Spin2, check out the
Getting Started Guide
- Try out the
example code for the P2 Platform
- Notes on
Overclocking (running over 300 MHz)
- There is a solder bridge jumper close to the
reset button that (when closed) increases Vdd from 1.8 V to 2.0 V,
allowing the P2 to easily achieve 350 MHz or more.
