HDMI USB Combo Adapter

The HDMI and USB Combo Adapter

This is an HDMI + dual USB combo adapter for the Eval/Edge style headers found on our "Platform" and "SWaP Carrier" boards.
- Needs to connect to two headers to get both HDMI and USB
- The header on the USB side does not have the 5V input connected, so that it might work with WX board headers (untested)

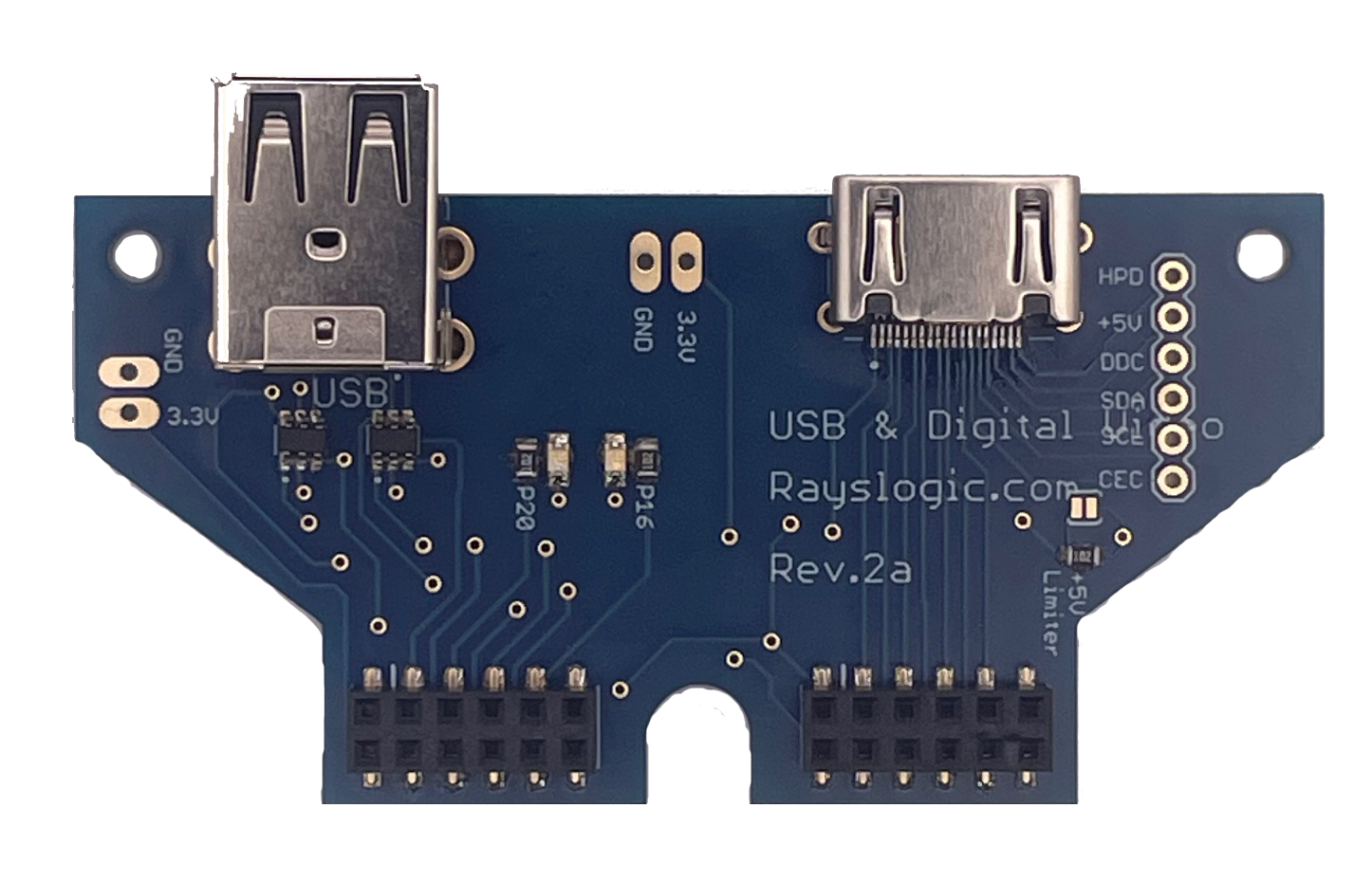

Photo and features of the HDMI and USB Combo Adapter
- Photos:
  - (click on image to enlarge)
- Features:
  - HDMI and Dual USB connectors
  - Each USB channel has a power switch/ESD protection chip (so needs the enable pin activated to power USB)
  - Two LEDs that can be used as USB status indicators (or something else)
  - Pair of 3.3V/GND headers
  - SMT solder bridge jumper to bypass the 1k resistor connection between 5V and the 5V input on the HDMI connector (probably not needed in most cases)
  - 6-Pin header for the other HDMI signals that are not connected via the header

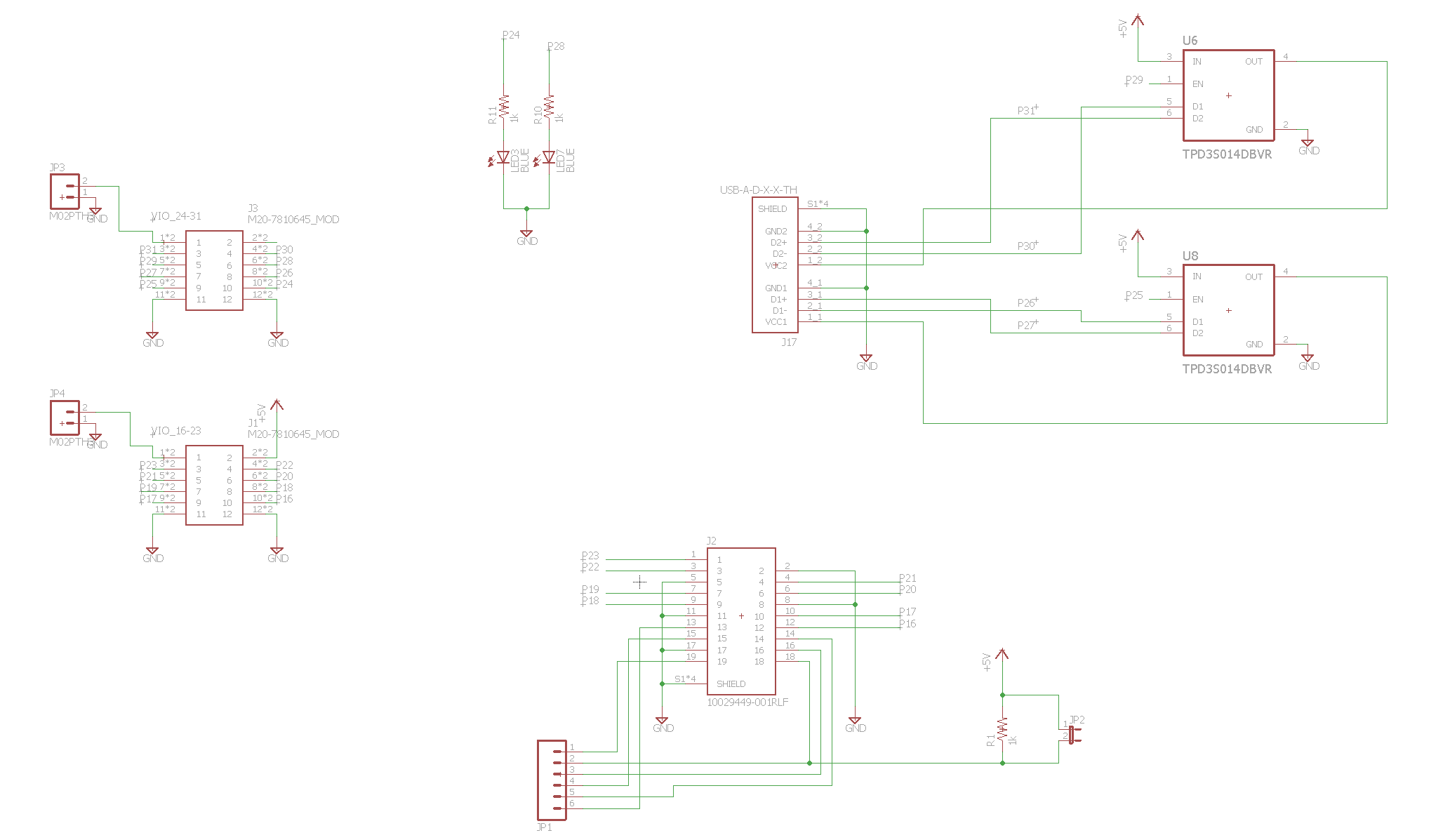

Download the Schematic
- Here are the Eagle design files
