VGA Audio USB Combo Adapter

The VGA and Stereo and USB Combo Adapter

This is an VGA + Stereo + dual USB combo adapter for the Eval/Edge style headers found on our "Platform" and "SWaP Carrier" boards.
- Needs to connect to two headers to get both VGA/Stero and USB
- The header on the USB side does not have the 5V input connected, so that it might work with WX board headers (untested)

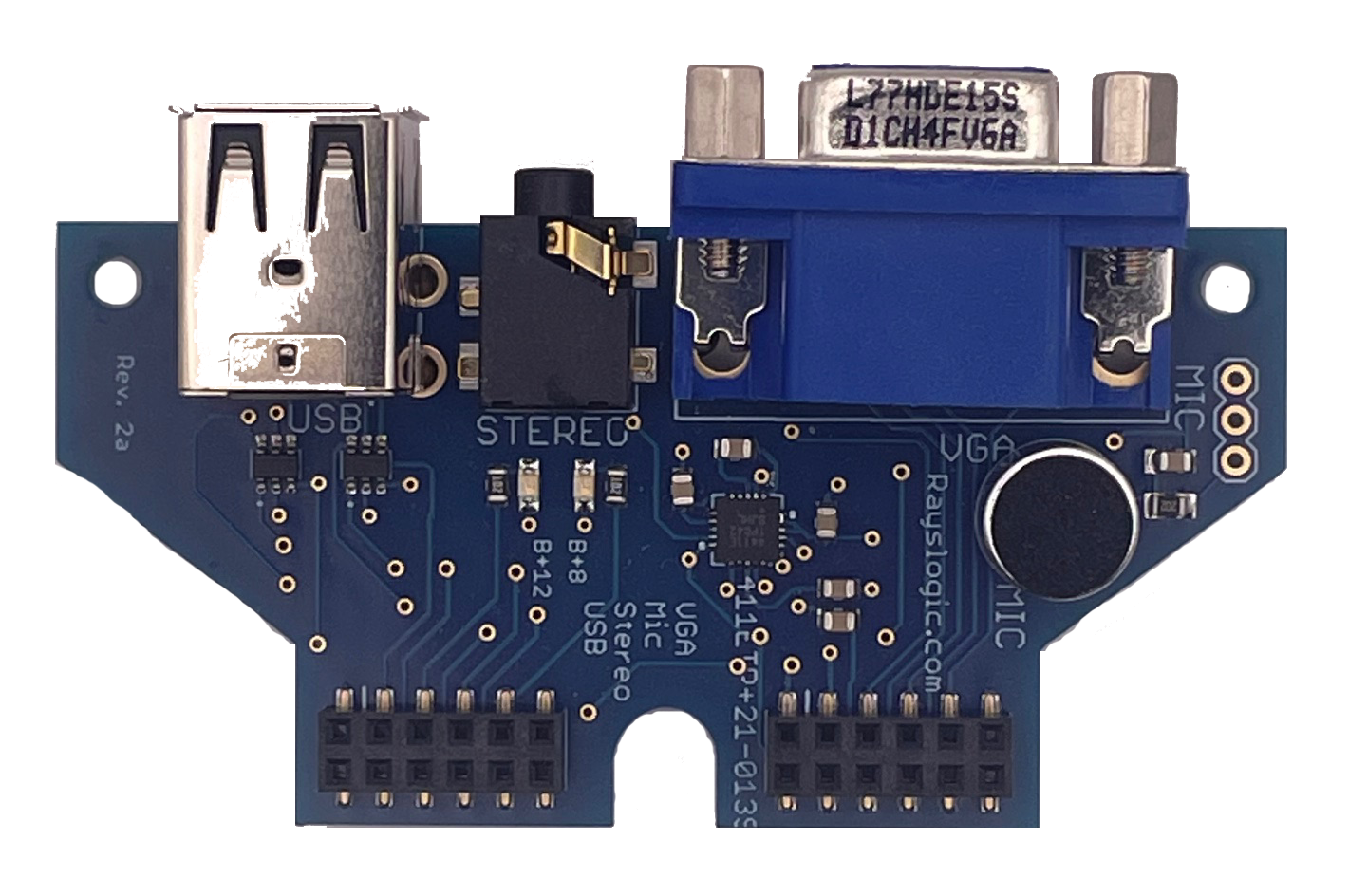

Photo and features of the VGA/Stereo and USB Combo Adapter
- Photos:
  - (click on image to enlarge)
- Features:
  - VGA and headphone jack and Dual USB connectors
  - Each USB channel has a power switch/ESD protection chip (so needs the enable pin activated to power USB)
  - Two LEDs that can be used as USB status indicators (or something else)
  - Microphone for audio input (can be removed and use the 3-pin header provided instead)

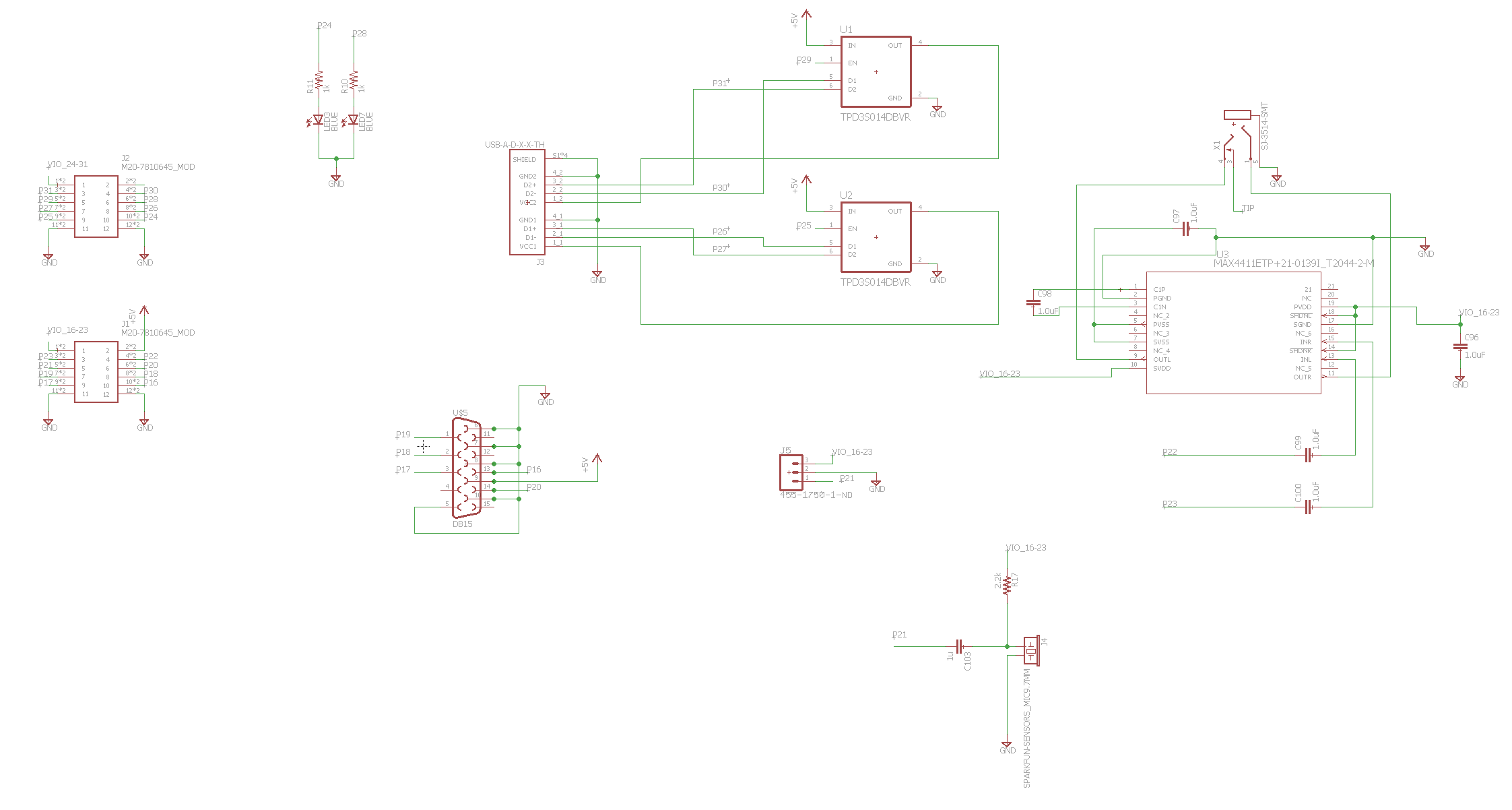

Download the Schematic
- Here are the Eagle design files
